高度耐用，尺寸准确开放式同步带

Habasync开口时序带具有精确的牙齿间距和非常小的公差，可保证对各种不同的输送机应用的平行和线性同步性。皮带提供精确的定位和温和的产品输送，同时支撑由于皮带上的更紧密的产品间距而提高效率。
开口端调节可以在车间或直接在输送机上连接到任何长度的无关。如果需要，可以在齿侧添加摩擦摩擦，耐磨聚酰胺织物，并在输送侧上耐磨耐酰胺聚酰胺织物。

特征开放式时序皮带

我们的Habasync开放式时序皮带提供以下功能：

机械性能
  • 摩擦/粘附
  • 发布
  • 抗磨性
  • 耐磨性
  • 抗抵抗
  • 压缩性

物理性质

  • 抗静电
  • 电导率
  • 耐寒性
  • 耐水解性
  • 不易燃的
化学性质
    • 油和脂肪耐脂肪
    • 酸和基抗性
    • 臭氧和紫外线
    • 食物批准
    • 易于清洁

    浏览广泛的居住皮带，配件和输送机部件

    查看可用的开放式时序皮带

    探索我们的开放式时序皮带的范围

    " data-content="
    • Standard trapezoidal tooth shape
    • Available pitches: T5, T10 and T20
    • Original metric tooth design (DIN 7721)
    • Optimal for conveying applications
    • Balanced tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options

    " data-tags="" data-email="">
    T系列
    " data-content="

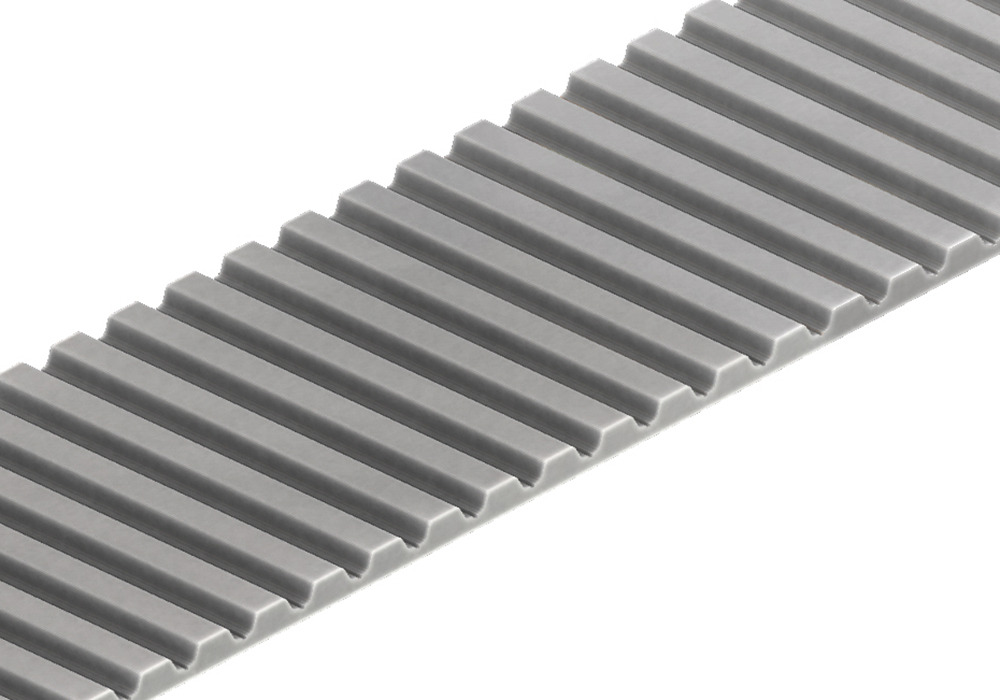

    • Heavy duty trapezoidal tooth shape
    • Available pitches: AT5, AT10 and AT20
    • Original metric tooth design (ISO 17396)
    • Superior backlash control
    • Sturdy tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options

    " data-tags="" data-email="">
    在系列
    " data-content="
    • Curvilinear tooth shape
    • Available pitches: 5M, 8M and 14M
    • Original metric tooth design (ISO 13050)
    • Increased tooth depth for high torque transmission and precise positioning
    • Low noise and vibration level

    " data-tags="" data-email="">
    HTD系列
    " data-content="
    • Trapezoid tooth shape
    • Available range of pitches: XL, L, H, XH
    • Optimal for conveying applications
    • Original metric tooth design (ISO 5296)
    • Balanced tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options


    " data-tags="" data-email="">
    玺系列

    " data-content="
    • Self-tracking timing belts provide improved tracking properties for side loaded applications
    • Notched guides on AT10 and H pitches
    • Notched or unnotched, welded V-guides available for all timing belt types
    • No need for pulley flanges
    • Solid or notched guides in any offered size can be added to all Habasit timing belts by welding to provide you best in class solutions adjusted to your needs
    • Balanced tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options
    " data-tags="" data-email="">
    自我跟踪类型

    " data-content="
    • Double-sided timing belts are used to transfer power on both sides instead of conveying products
    • Available pitches: DT5, DAT5, DT10, DAT10, DT20, DAT20, D5M, D8M, D14M
    • Manufactured according to ISO 17396 (tooth over tooth gap) for trapezoidal shapes
    • Manufactured according to ISO 13050 (tooth over tooth) for curvilinear tooth shapes
    • Balanced tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options

    " data-tags="" data-email="">
    双面类型
    " data-content="
    • Flat belts are great alternative to standard flat belts where dimensional stability and strength properties are key features
    • Different thickness variants offer best in class strength properties and high reliability and performance
    • Balanced tension member design for reliable tracking performance
    • Wide range of polyurethane and tension member options
    • Fully customizable options

    " data-tags="" data-email="">
    平带系列
    " data-content="
    • Trapezoidal tooth shape with fully encapsulated cords and belt edge protection
    • Available in T10 and T5 pitches
    • Original metric tooth design (ISO 17396)
    • Best in class food grade polyurethane combined with aramid tension member
    • Designed for food safety by food experts (EU, FDA and USDA meat and poultry food conformity)
    " data-tags="" data-email="">
    封闭的飞行系列
